Right-to-Left Text in PDF Generation: Introducing HotPDF’s RtLTextOut Function

Introduction to Right-to-Left Languages

Right-to-Left (RTL) languages represent a significant portion of the world’s written communication systems, serving over 400 million people globally. These languages include Arabic, Hebrew, Persian (Farsi), Urdu, Pashto, and several others, each with their own unique characteristics and cultural significance.

Historical and Cultural Context

RTL writing systems have ancient origins dating back thousands of years. Arabic, for instance, evolved from the Nabataean script and became standardized during the early Islamic period. Hebrew has an even longer history, with ancient Hebrew inscriptions dating back to the 10th century BCE. These writing systems developed independently of Latin-based scripts and reflect different approaches to organizing written information.

Linguistic Characteristics of RTL Languages

RTL languages possess several distinctive features that impact digital text processing:

Script Direction: Text flows from right to left, opposite to European languages
Contextual Letter Forms: Many RTL scripts use different letter shapes depending on position (initial, medial, final, isolated)
Ligatures and Connections: Letters often connect to form continuous words, requiring sophisticated rendering
Diacritical Marks: Vowel marks and other diacritics appear above or below base characters
Bidirectional Text: RTL documents frequently contain embedded LTR elements (numbers, Latin text, URLs)

Digital Challenges and Unicode Standards

The digital representation of RTL languages presents unique technical challenges:

Character Encoding: Unicode provides standardized code points for RTL characters:
- Arabic: U+0600-U+06FF (Arabic block)
- Hebrew: U+0590-U+05FF (Hebrew block)
- Arabic Supplement: U+0750-U+077F
- Arabic Extended-A: U+08A0-U+08FF
Bidirectional Algorithm: The Unicode Bidirectional Algorithm (UBA) defines how mixed RTL/LTR text should be processed
Font Requirements: RTL text requires fonts with proper glyph coverage and shaping capabilities
Layout Considerations: User interfaces and documents must accommodate right-to-left reading patterns

Global Market Significance

Supporting RTL languages is crucial for businesses and organizations operating in diverse markets:

Arabic-speaking regions: 22 countries with over 300 million native speakers
Hebrew market: Israel and Jewish communities worldwide
Persian/Farsi: Iran, Afghanistan, and Tajikistan
Urdu: Pakistan and parts of India
Economic impact: Combined GDP of RTL language regions exceeds $4 trillion

In today’s globalized world, creating PDF documents that properly support multiple languages and writing systems has become increasingly important. While most PDF generation libraries handle left-to-right (LTR) languages like English, French, and German with ease, supporting right-to-left (RTL) languages such as Arabic and Hebrew presents unique challenges. This article explores the innovative RtLTextOut function in the HotPDF Delphi component and demonstrates its practical implementation through a comprehensive demo application.

Understanding the Challenge of RTL Text in PDFs

Right-to-left languages require special handling in digital documents for several reasons:

Character Order: RTL text flows from right to left, opposite to LTR languages
Bidirectional Text: Documents often contain mixed RTL and LTR content
PDF Viewer Behavior: PDF readers need proper direction hints to display text correctly
Unicode Complexity: RTL characters have specific Unicode ranges that must be detected and processed

Traditional PDF generation approaches often fail when dealing with RTL text, resulting in reversed character sequences, incorrect reading order, or completely garbled output.

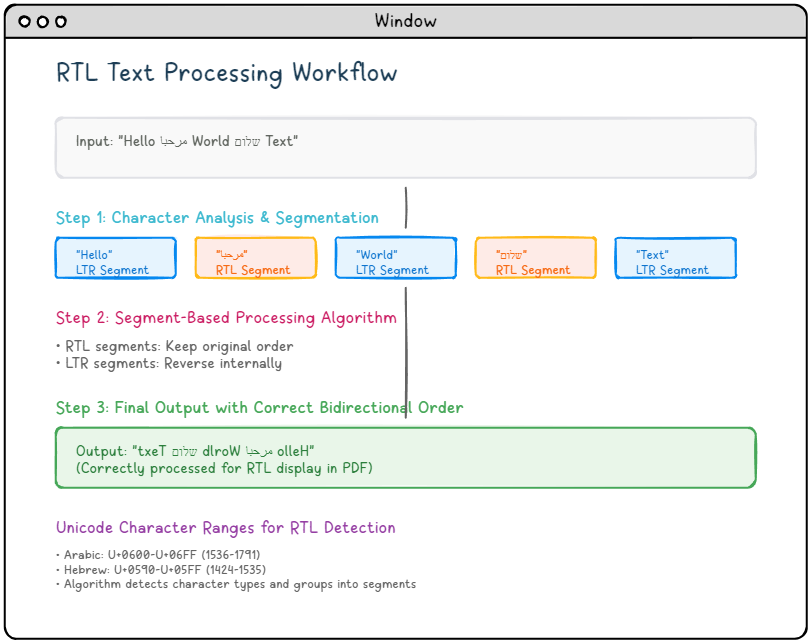

RTL Text Processing Workflow Diagram showing the complete process from input text analysis through character segmentation, segment-based processing algorithm, to final bidirectional output in PDF format — Figure 1: RTL Text Processing Workflow in HotPDF – Illustrating the segment-based algorithm that processes mixed RTL/LTR text by maintaining RTL segments in original order while reversing LTR segments internally for correct bidirectional display in PDF documents

Introducing HotPDF’s RtLTextOut Function

The HotPDF component addresses these challenges through its sophisticated RtLTextOut function, which implements advanced bidirectional text processing algorithms. Unlike simple character reversal approaches, RtLTextOut uses segment-based processing to handle mixed RTL/LTR content intelligently.

Function Signatures

The RtLTextOut function provides two overloaded versions for maximum flexibility:

// PWORD version for direct Unicode character array access
procedure RtLTextOut(X, Y: Single; angle: Extended; Text: PWORD; TextLength: Integer);

// WideString version for convenient string handling
procedure RtLTextOut(X, Y: Single; angle: Extended; Text: WideString);

// PWORD version for direct Unicode character array access

procedure RtLTextOut(X, Y: Single; angle: Extended; Text: PWORD; TextLength: Integer);

// WideString version for convenient string handling

procedure RtLTextOut(X, Y: Single; angle: Extended; Text: WideString);

Core Algorithm: Segment-Based Processing

The heart of RtLTextOut lies in its segment-based bidirectional algorithm. Instead of applying blanket character reversal, the function:

Analyzes Character Types: Identifies RTL characters (Arabic: U+0600-U+06FF, Hebrew: U+0590-U+05FF)
Segments Text: Groups consecutive characters of the same type (RTL or LTR)
Applies Selective Processing:
- RTL segments maintain their original order
- LTR segments are reversed internally
Produces Correct Output: Results in the pattern Reversed(C)+B+Reversed(A) for segments A+B+C

// Core segment processing logic
I := 0;
while I < TextLength do begin // Determine if current character starts an RTL or LTR segment IsRTLChar := ((ReversedText[I] >= $0600) and (ReversedText[I] <= $06FF)) or // Arabic ((ReversedText[I] >= $0590) and (ReversedText[I] <= $05FF));      // Hebrew

  CurrentSegmentIsRTL := IsRTLChar;
  SegmentStart := I;

  // Find the end of current segment (same character type)
  while (I < TextLength) do begin IsRTLChar := ((ReversedText[I] >= $0600) and (ReversedText[I] <= $06FF)) or ((ReversedText[I] >= $0590) and (ReversedText[I] <= $05FF));

    if IsRTLChar <> CurrentSegmentIsRTL then
      Break;
    Inc(I);
  end;

  SegmentEnd := I - 1;

  // Process the segment
  if CurrentSegmentIsRTL then
  begin
    // RTL segment: keep original order
    for J := SegmentStart to SegmentEnd do
      OutputText[J] := ReversedText[J];
  end
  else
  begin
    // LTR segment: reverse the segment internally
    for J := SegmentStart to SegmentEnd do
      OutputText[J] := ReversedText[SegmentEnd - (J - SegmentStart)];
  end;
end;

// Core segment processing logic

I := 0;

while I < TextLength do begin // Determine if current character starts an RTL or LTR segment IsRTLChar := ((ReversedText[I] >= $0600) and (ReversedText[I] <= $06FF)) or // Arabic ((ReversedText[I] >= $0590) and (ReversedText[I] <= $05FF)); // Hebrew

CurrentSegmentIsRTL := IsRTLChar;

SegmentStart := I;

// Find the end of current segment (same character type)

while (I < TextLength) do begin IsRTLChar := ((ReversedText[I] >= $0600) and (ReversedText[I] <= $06FF)) or ((ReversedText[I] >= $0590) and (ReversedText[I] <= $05FF));

if IsRTLChar <> CurrentSegmentIsRTL then

Break;

Inc(I);

end;

SegmentEnd := I - 1;

// Process the segment

if CurrentSegmentIsRTL then

begin

// RTL segment: keep original order

for J := SegmentStart to SegmentEnd do

OutputText[J] := ReversedText[J];

end

else

begin

// LTR segment: reverse the segment internally

for J := SegmentStart to SegmentEnd do

OutputText[J] := ReversedText[SegmentEnd - (J - SegmentStart)];

end;

Automatic PDF Direction Configuration

Beyond text processing, RtLTextOut automatically configures the PDF document for optimal RTL display:

// Store original direction and set to RightToLeft
OriginalDirection := FParent.FDirection;
FParent.FDirection := RightToLeft;
FParent.FViewerPreference := FParent.FViewerPreference + [vpDirection];
FParent.FVPChanged := true;

// Store original direction and set to RightToLeft

OriginalDirection := FParent.FDirection;

FParent.FDirection := RightToLeft;

FParent.FViewerPreference := FParent.FViewerPreference + [vpDirection];

FParent.FVPChanged := true;

This ensures that PDF viewers open the document with the correct reading direction, providing users with an intuitive reading experience.

Exploring the RtLTextOut Demo Application

The HotPDF library includes a comprehensive demo application (Demo\Delphi\RtLTextOut\RtLTextOut.dpr) that showcases the RtLTextOut function’s capabilities across various scenarios.

Demo Structure and Features

The demo application demonstrates:

Basic Arabic Text Output: Simple RTL text rendering
Hebrew Text Support: Comprehensive Hebrew character handling
Mixed Language Content: RTL/LTR text combinations
Technical Documentation: Implementation notes and best practices

program RtLTextOut;
{$I ..\..\..\Lib\HotPDF.inc}

{$APPTYPE CONSOLE}

uses
  {$IFDEF XE2+}
  System.SysUtils,
  Vcl.Graphics,
  {$ELSE}
  SysUtils,
  Graphics,
  {$ENDIF}
  HPDFDoc;

var
  HotPDF: THotPDF;
begin
  try
    HotPDF := THotPDF.Create(nil);
    try
      HotPDF.FileName := 'RtLTextOut.pdf';
      HotPDF.Title := 'RtLTextOut Function Test - Right-to-Left Text Output';

      HotPDF.BeginDoc;

      // Title
      HotPDF.CurrentPage.SetFont('Arial', [fsBold], 18, 0, False);
      HotPDF.CurrentPage.TextOut(40, 50, 0, 'RtLTextOut Function Demonstration');

      // Arabic text demonstration
      HotPDF.CurrentPage.SetFont('Arial Unicode MS', [], 12, 178, False);
      HotPDF.CurrentPage.TextOut(40, 160, 0, 'RtLTextOut:');
      HotPDF.CurrentPage.RtLTextOut(40, 180, 0, 'يوضح ملف PDF هذا كيفية التعامل بشكل صحيح مع النص العربي من اليمين إلى اليسار.');

      // Hebrew text demonstration
      HotPDF.CurrentPage.SetFont('Arial Unicode MS', [], 12, 177, False);
      HotPDF.CurrentPage.RtLTextOut(40, 370, 0, 'קובץ PDF זה מדגים כיצד לטפל כראוי בטקסט עברי הזורם מימין לשמאל.');

      // Mixed text demonstration
      HotPDF.CurrentPage.RtLTextOut(40, 550, 0, 'مرحبا بالعالم! اكتب في مستندات PDF التي تم إنشاؤها بواسطة مكون HotPDF');

      HotPDF.EndDoc;
      Writeln('RtLTextOut.pdf created successfully!');

    finally
      HotPDF.Free;
    end;
  except
    on E: Exception do
      Writeln('Error: ', E.Message);
  end;
end.

program RtLTextOut;

{$I ..\..\..\Lib\HotPDF.inc}

{$APPTYPE CONSOLE}

uses

{$IFDEF XE2+}

System.SysUtils,

Vcl.Graphics,

{$ELSE}

SysUtils,

Graphics,

{$ENDIF}

HPDFDoc;

var

HotPDF: THotPDF;

begin

try

HotPDF := THotPDF.Create(nil);

try

HotPDF.FileName := 'RtLTextOut.pdf';

HotPDF.Title := 'RtLTextOut Function Test - Right-to-Left Text Output';

HotPDF.BeginDoc;

// Title

HotPDF.CurrentPage.SetFont('Arial', [fsBold], 18, 0, False);

HotPDF.CurrentPage.TextOut(40, 50, 0, 'RtLTextOut Function Demonstration');

// Arabic text demonstration

HotPDF.CurrentPage.SetFont('Arial Unicode MS', [], 12, 178, False);

HotPDF.CurrentPage.TextOut(40, 160, 0, 'RtLTextOut:');

HotPDF.CurrentPage.RtLTextOut(40, 180, 0, 'يوضح ملف PDF هذا كيفية التعامل بشكل صحيح مع النص العربي من اليمين إلى اليسار.');

// Hebrew text demonstration

HotPDF.CurrentPage.SetFont('Arial Unicode MS', [], 12, 177, False);

HotPDF.CurrentPage.RtLTextOut(40, 370, 0, 'קובץ PDF זה מדגים כיצד לטפל כראוי בטקסט עברי הזורם מימין לשמאל.');

// Mixed text demonstration

HotPDF.CurrentPage.RtLTextOut(40, 550, 0, 'مرحبا بالعالم! اكتب في مستندات PDF التي تم إنشاؤها بواسطة مكون HotPDF');

HotPDF.EndDoc;

Writeln('RtLTextOut.pdf created successfully!');

finally

HotPDF.Free;

end;

except

on E: Exception do

Writeln('Error: ', E.Message);

end;

end.

Key Demo Highlights

Arabic Text Processing: The demo showcases how RtLTextOut handles complex Arabic sentences with proper character flow and spacing.

Hebrew Support: Demonstrates Hebrew text rendering with correct right-to-left orientation.

Mixed Language Content: Shows how the function intelligently processes text containing both RTL and LTR elements.

Font Configuration: Illustrates proper Unicode font selection (Arial Unicode MS) for RTL character support.

Technical Implementation Details

Unicode Character Detection

The function employs robust Unicode range detection:

Arabic: U+0600 to U+06FF (1536-1791 decimal)
Hebrew: U+0590 to U+05FF (1424-1535 decimal)

Memory Management

Efficient array handling ensures optimal performance:

// Initialize arrays
SetLength(ReversedText, TextLength);
SetLength(OutputText, TextLength);

// Copy original text first
for I := 0 to TextLength - 1 do
begin
  ReversedText[I] := TempText^;
  Inc(TempText);
end;

// Initialize arrays

SetLength(ReversedText, TextLength);

SetLength(OutputText, TextLength);

// Copy original text first

for I := 0 to TextLength - 1 do

begin

ReversedText[I] := TempText^;

Inc(TempText);

end;

Vertical Text Support

The function includes specialized handling for vertical fonts:

if CurrentFontObj.IsVertical then
begin
  DeltaH := TextHeight('Zj');
  DeltaW := TextWidth('W');
  HorizontalLine := Y;
  ChBuff := @ChCode;
  for I := 0 to TextLength - 1 do
  begin
    ChCode := OutputText[I];
    if (ChCode = $30FC) then
      ChCode := $7C;
    InternUnicodeTextOut(X + (DeltaW / 2), HorizontalLine - DeltaH, 0, ChBuff, 1);
    HorizontalLine := HorizontalLine + DeltaH;
  end;
end
else
  InternUnicodeTextOut(X, Y, angle, @OutputText[0], TextLength);

if CurrentFontObj.IsVertical then

begin

DeltaH := TextHeight('Zj');

DeltaW := TextWidth('W');

HorizontalLine := Y;

ChBuff := @ChCode;

for I := 0 to TextLength - 1 do

begin

ChCode := OutputText[I];

if (ChCode = $30FC) then

ChCode := $7C;

InternUnicodeTextOut(X + (DeltaW / 2), HorizontalLine - DeltaH, 0, ChBuff, 1);

HorizontalLine := HorizontalLine + DeltaH;

end;

end

else

InternUnicodeTextOut(X, Y, angle, @OutputText[0], TextLength);

Best Practices for RTL Text in PDFs

Font Selection

Choose Unicode-capable fonts that support your target RTL languages:

Arial Unicode MS: Comprehensive Unicode support
Times New Roman: Good for mixed content
Tahoma: Excellent Arabic support

Text Encoding

Ensure proper Unicode encoding in your source text:

// Use WideString for Unicode text
var
  ArabicText: WideString;
begin
  ArabicText := 'النص العربي';
  HotPDF.CurrentPage.RtLTextOut(X, Y, 0, ArabicText);
end;

// Use WideString for Unicode text

var

ArabicText: WideString;

begin

ArabicText := 'النص العربي';

HotPDF.CurrentPage.RtLTextOut(X, Y, 0, ArabicText);

end;

PDF Viewer Compatibility

The automatic direction setting ensures compatibility across PDF viewers:

Adobe Acrobat Reader
Foxit Reader
Chrome PDF Viewer
Firefox PDF Viewer

Performance Considerations

The segment-based algorithm provides excellent performance characteristics:

Linear Time Complexity: O(n) processing time
Minimal Memory Overhead: Efficient array management
Single-Pass Processing: No multiple iterations required
Optimized Character Detection: Fast Unicode range checks

Real-World Applications

Document Localization

The RtLTextOut function enables seamless document localization for RTL markets:

Legal documents in Arabic
Hebrew technical manuals
Multilingual forms and contracts
Educational materials

International Business

Businesses operating in RTL language markets can leverage this functionality for:

Invoice generation
Report creation
Certificate printing
Marketing materials

Troubleshooting Common Issues

Character Encoding Problems

Issue: Garbled or missing characters
Solution: Ensure proper Unicode encoding and font selection

// Correct approach
HotPDF.CurrentPage.SetFont('Arial Unicode MS', [], 12, 178, False);
var
  Text: WideString := 'النص العربي';
HotPDF.CurrentPage.RtLTextOut(X, Y, 0, Text);

// Correct approach

HotPDF.CurrentPage.SetFont('Arial Unicode MS', [], 12, 178, False);

var

Text: WideString := 'النص العربي';

HotPDF.CurrentPage.RtLTextOut(X, Y, 0, Text);

Direction Issues

Issue: Text appears in wrong direction
Solution: Verify that RtLTextOut is used instead of regular TextOut

Mixed Content Problems

Issue: Incorrect ordering in mixed RTL/LTR text
Solution: The segment-based algorithm handles this automatically

Future Enhancements and Roadmap

The HotPDF development team continues to enhance RTL support:

Extended Language Support: Additional RTL languages
Complex Script Handling: Advanced typography features
Performance Optimizations: Further speed improvements
Enhanced Debugging: Better diagnostic tools

Final Words

The RtLTextOut function in HotPDF represents a significant advancement in PDF generation technology for RTL languages. Its sophisticated segment-based processing algorithm, combined with automatic PDF configuration, provides developers with a powerful tool for creating truly international PDF documents.

The comprehensive demo application serves as both a learning resource and a practical implementation guide, demonstrating best practices for RTL text handling in real-world scenarios. Whether you’re developing applications for Arabic-speaking markets, creating Hebrew documentation, or building multilingual systems, the RtLTextOut function provides the robust foundation needed for professional-quality PDF generation.

By understanding and implementing these techniques, developers can create PDF documents that properly serve global audiences, breaking down language barriers and ensuring that content is accessible and readable regardless of the writing system used.

losLab Software Development

RtLTextOut Function in HotPDF Component

Right-to-Left Text in PDF Generation: Introducing HotPDF’s RtLTextOut Function

Introduction to Right-to-Left Languages

Historical and Cultural Context

Linguistic Characteristics of RTL Languages

Digital Challenges and Unicode Standards

Global Market Significance

Understanding the Challenge of RTL Text in PDFs

Introducing HotPDF’s RtLTextOut Function

Function Signatures

Core Algorithm: Segment-Based Processing

Automatic PDF Direction Configuration

Exploring the RtLTextOut Demo Application

Demo Structure and Features

Key Demo Highlights

Technical Implementation Details

Unicode Character Detection

Memory Management

Vertical Text Support

Best Practices for RTL Text in PDFs

Font Selection

Text Encoding

PDF Viewer Compatibility

Performance Considerations

Real-World Applications

Document Localization

International Business

Troubleshooting Common Issues

Character Encoding Problems

Direction Issues

Mixed Content Problems

Future Enhancements and Roadmap

Final Words
